This gabled roof frame is designed around the T-Rex connectors! T-Rex is a fast, easy and strong way to build a timber frame. You can find out more at www.ctpostandbeam.com
NOTE- This plan is structural frame only. Please ask Team Timber about add-on features such as foundation details, window/door layouts or full plan sets!
Frame Specifications:
- Size: 14' x 20'
- Joinery: T-Rex Connectors
- Posts: 6x6
- Plate Beams: 6x10
- Tie Beam: 6x8 and 6x12
- Joists: 6x6
- Rafters: 3x8
- Ridge Beam: 2x12
- Knee Braces: 4x6
- Collar Ties: 3x8
- Roof: 12 Pitch
- Wall Height: 10'10"
Plan Specifications:
- Frame Elevations
- Material List
- Post Layout
- All Wall Layouts
- Beam/Joist Layout

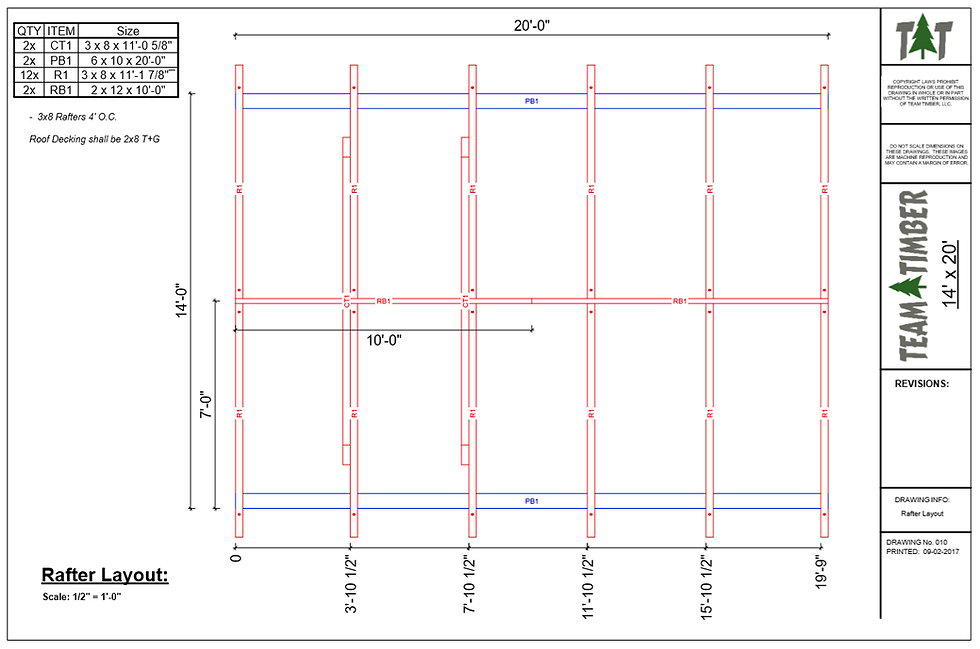

- Rafter Layout
- Single Beam Drawings
- Fastening Details
14' x 20' T-REX Frame
SKU: TR12G1420
$225.00Price
The CNC Pre-Cut Frame for this Workshop starts at $9,000. Contact us for more information.
