Our 24' x 30' Forest Ridge Cabin is the classic cabin that can fit in anywhere.   This timber frame plan includes everything to get you started building your dream cabin. We provide all the door and window schedules, sample architectural elevations, sample floor plans, frame elevations, timber/fastener/connector list, all wall layouts, beam layouts, rafter layout, fastening details, and all single beam drawings. It uses 8x8 posts, 8x12 plate beams, 6x8, 8x10 and 8x12 tie beams, 6x10 joists, 4x6 knee braces, 8x12 ridge plates and a mixture of 6x8, 6x10 rafters and 8x10. Let us help you get started today on that dream cabin of yours!

Building Specifications:
Size: 24' x 30'
Total Square Footage: 1,020

Frame Specifications:
*Timbers are 1/2" Under Full Dimension*
Joinery: Mortise and Tenon
Posts: 8x8
Plate Beam: 8x12
Tie Beams: 6x8, 8x10 and 8x12
Joists: 6x10
Ridge Plates: 8x12
Rafters: 6x8, 6x10 and 8x10
Knee Braces: 4x6
Roof: Main Roof: 10 Pitch; Front Porch: 4 Pitch; Dormer: 4 Pitch
Wall Height: 1st Floor: 7'-9 3/4”; 2nd Floor Knee Wall: 2'-0 1/4"

This Plan Includes the Following:

Architectural Items:
*All Architectural Item Pages to be Printed on 24" x 36" Paper Size*
Sample Architectural Elevations
Door and Window Schedules
Sample First Floor Plan

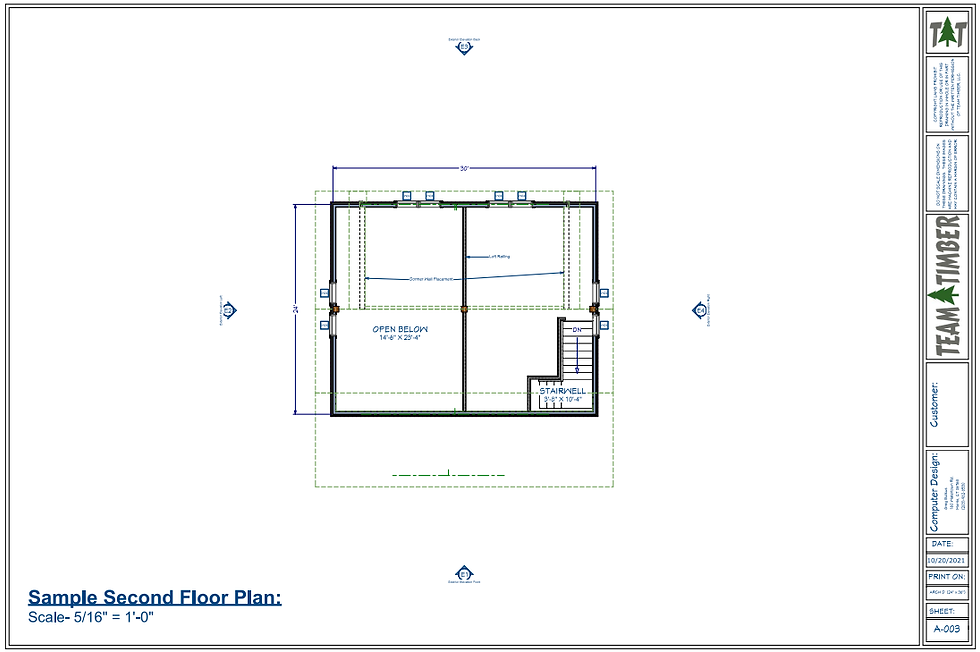

Sample Second Floor Plan
Timber Frame Overview

Timber Frame Items:
*All Timber Frame Item Pages to be Printed on 11" x 17" Paper Size*
Frame Elevations
Material List
Wall/Post Layout
Wall Layouts
Joist Layout
Rafter/Plate Layout
Fastening Details
Single Beam Drawings
